Hi, I'm Tim Carter, Ask the Builder.com
0:10
I want to talk to you a little bit about plumbing riser diagrams and why they're so complex
0:17
And guess what? I can draw yours. Let's get started. So here I'm on a plumbing job here in Greenville, Maine
0:23

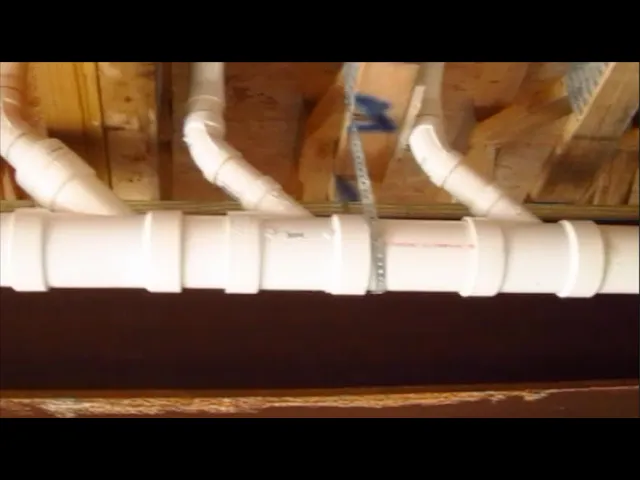

This is a four inch stack we had to put in. We had to tie in down here to the existing building drain under the building
0:29
the gravel. This is a 4x2 Y that's going to take care of boiler condensate. There's a clean
0:36
out. You come up the stack. You come around here. There's some Ys. We had to throw a Y off for a
0:42
sink in a breakfast area. This is the loop vent for the kitchen sink. Here's the washing machine
0:48
Four inch pipe continues. Look at this. We keep going down, keep going down, down, down
0:54
Look at this. Big 4x3 Y here. Because over here, we've been
0:59
pick up another bathroom here on the first floor. And then that stack there goes up right here
1:09
Here's a stack that goes up to a second floor bathroom. It gets better. All right. Here's a
1:16
three by two Y that services a master bathroom sink And then it goes over here to a sink way up on a second floor here is a Y that going to take care of the master bathroom tub and shower
1:31
here's the master bathroom toilet right here and of course this is the vent for the
1:38
toilet so see how complex it is you think you could do that you know the pipe sizes I doubt
1:43
it see how complex it is plumbing's not as easy as you think and I
1:47
I know you need a riser diagram to get your plumbing permit. I can do it
1:52
I've got the phone number in the video description. I'm the best price in the United States
1:57
Go ahead, call me. I'm happy to do your plumbing riser diagram
2:02
I'm Tim Carter, Ask the Builder, and I've been a master plumber since 1981
2:18
If you want to discover more home improvement tips, go to askthebuilder.com
